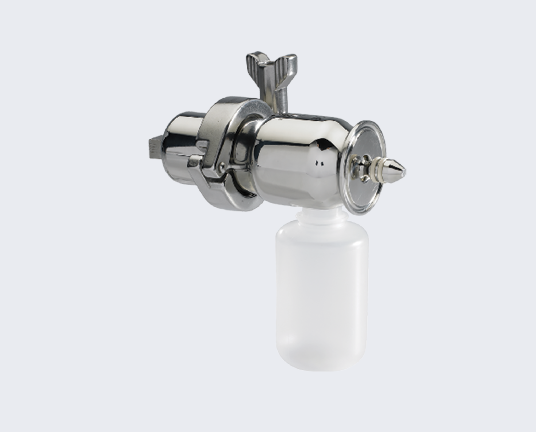

Sentry ISOLOK MSA Sampler
Sentry ISOLOK MSA Sampler

MSA Sanitary Sampler

Part #: TBD

Get Started

Request A Quote

Not What You're Looking For?

Contact Us
Designed for sanitary milk sampling, the ISOLOK MSA sampler ensures that your samples are representative of your entire dairy process.
This automatic sampler is easy-to-clean and compact enough to fit a road tanker. The ISOLOK sampler's design uses compressed air and an electrical cycle controller to collect a composite sample.

  • This sanitary sampler has been third party verified to meet 3-A sanitary standards.
  • Uses conventional sanitary fittings to mount on any size line.

Sample volume per cycle 0.5 cc
Maximum cycle frequency 240 strokes per minute, depending on application
Line mounting options Tri-clamp
Materials 316 stainless steel/Buna-N; other seal materials available
Sample temperature range -40° to 500°F (-40° to 260°C), depending on seal material and duty cycle
Ambient operating temperature range -5° to 131°F (-20° to 55°C), depending on seal material
Compressed air requirements 2 SCFM at 90 psi (.05 m³/min at 6.2 bar)
Dimensions 4.75 in x 2 in (121 mm x 51 mm)
Shipping weight 3.5 lb (1.5 kg)
