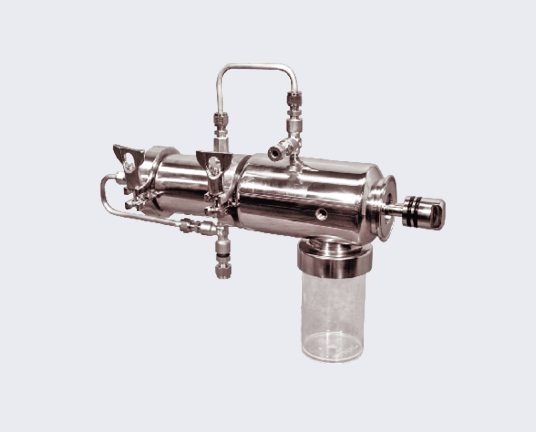

Designed for high viscosity applications such as toothpaste, peanut butter, and concentrates, the ISOLOK MSE high viscosity sampler ensures that your samples are representative of your entire food and beverage process.
This automatic sampler's contracting annulus and sanitary construction ensure that you are meeting the demands of your processes and isolating the sample from human bias. By handling pressures up to 150 psi, the ISOLOK sampler's design is adaptable to a mutlitude of applications without limiting its functionality.

  • This high viscosity sampler captures 10 cc per cycle
  • The sampler's tri-clamp mounting design allows for easy installation, maintenance, and versatility with a variety of process lines.
  • A variety of customizations are available from port closures, line adapters, different containers. and more.

Sample volume per cycle 10 cc
Maximum cycle frequency 6 strokes per minute, depending on application
Materials 316 stainless steel/Buna-N; other seal materials available
Sample temperature range -40° to 500°F (-40° to 260°C), depending on seal material and duty cycle
Ambient operating temperature range -5° to 131°F (-20° to 55°C), depending on seal material
Compressed air requirement 2 SCFM at 90 psi (.05 m³/min at 6.2 bar)
Dimensions 10.3 in x 4 in (26 cm x 10 cm)
Shipping weight 16.6 lb (7.5 kg)
