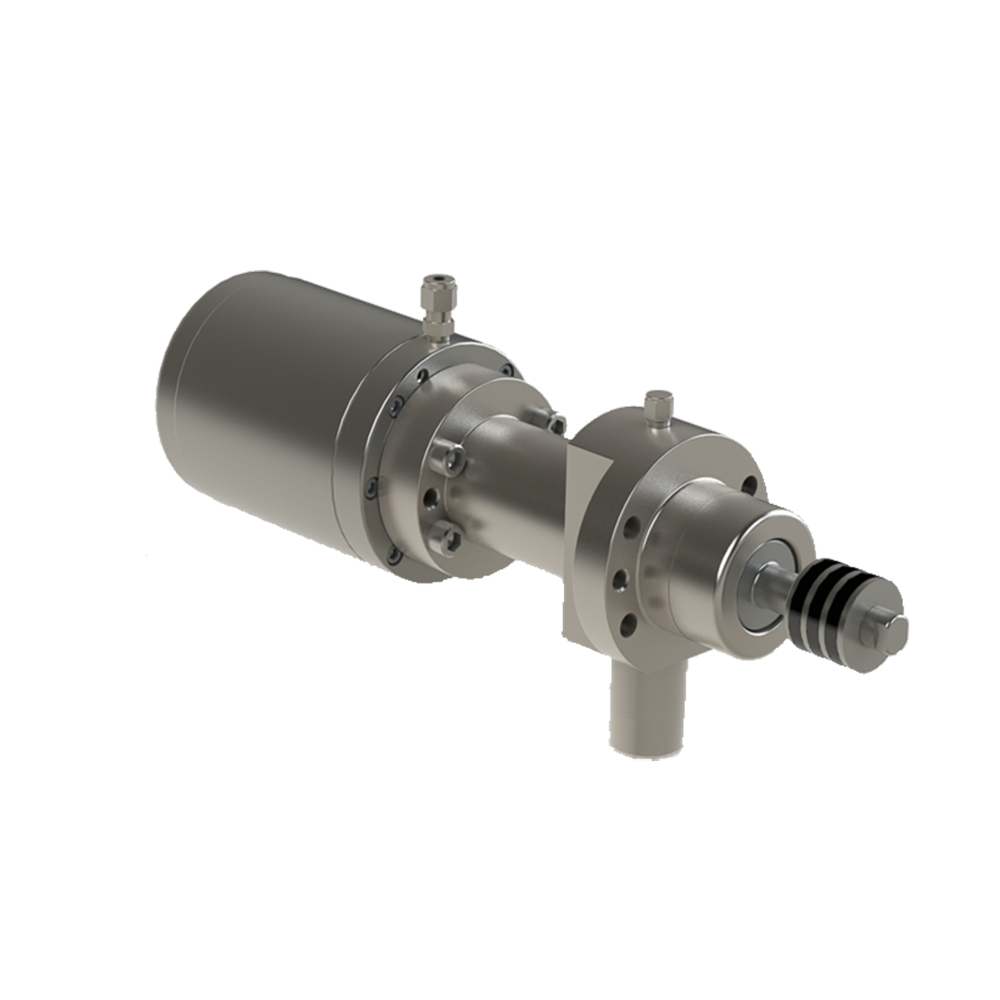

SAB Automatic Fixed Volume Sampler

Part #: TBD

Get Started

Request A Quote

Not What You're Looking For?

Contact Us
Designed for thick liquids such as bauxite mud and resin bead slurry, the ISOLOK SAB liquid sampler ensures that your samples are representative of your entire process and operators are protected from potentially hazardous products
This automatic sampler is made with 316 Stainless Steel components to meet different process applications.
The ISOLOK sampler's design uses compressed air and a controller to force a plunger into up to 300 psi (20.7 bar) pressurized processes for complete representative sampling.

  • This ISOLOK SAB liquid sampler has a variety of options as various materials of construction and seal materials, port closures, different container types, sampler enclosures, etc.
  • The SAB sampler is available with two different sample sizes, 10 cc or 25 cc per sample cycle.

Sample volume per cycle 10 or  25 cc
Maximum cycle frequency 10 strokes per minute, depending on application
Maximum particle size .375 in (9 mm)
Line mounting options MNPS thread, tri-clamp, instrument hub, bolted hub
Materials 316 stainless steel; other materials available
Cylinder seals HalarĀ®, TFE or custom
Plunger seals TFE, polyurethane, EPDM rubber, FFKM or custom
Commpressed air requirement 2 SCFM at 90 psi (.05 mĀ³/minimum at 6.2 bar)
Dimensions 13.19 in x 4 in (33.5 cm x 10 cm)
Minimum hipping weight 28 lb (12.7 kg)
