Designed for sampling powders, flakes, and pellets, the ISOLOK SAH  sampler ensures that your samples are representative of your entire process

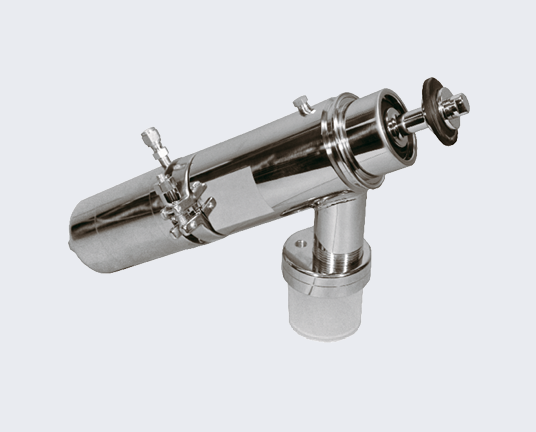

The Sentry® ISOLOK® SAH automatic point sampler is an extended stroke sampler for collecting flowable free-falling materials within chutes or slides. A three-inch plunger stroke collects samples inside heavy-body or double-wall vessels such as mixers, dryers, and reactors.
An air cylinder extends a single plunger into the process material, then immediately withdraws, carrying a fixed amount of sample trapped in an annular ring between plunger seals. Process or flow ports are always closed, preventing leaks or product loss. There are no tubes or passages to become clogged. The gravity-discharged sample is transferred directly to a closed container.

  • The SAK powder sampler is designed to capture a 16 or 18cc sample.
  • The sampler is available in versatile seal options to meet your process needs.
  • Handles powder, flakes, and pellets up tp 5/8 inch (16mm) without shearing or degrading sample material.
  • The Sentry ISOLOKSAH sampler seal design isolates the operator from the process at all times, with the sample captured in the container "locked out" from external influences.
  • The samplers can be used for composite, batch or analysis sampling techniques.


  • Collects samples from slide or vertical drop chutes or direct from open processes
  • Single moving part collects accurate and repeatable 40 or 50 cc sample volume
  • Simple gravity-discharge design for powder, flakes or pellets up to 5/8 inch (16 mm) without shearing or degrading sample material
  • Rugged 316 stainless steel cinstruction
  • Field-replaceable, application specific
  • Seals include EPDM, polyurethane elastomers and more
  • Extended-stroke plunger ideal for sample collection inside heavy-bosy/double-wall vessels
  • Clamp ferrule for easy installation and maintenance
  • ATEX-compliant models available

Sample volume per cycle 40 or 50 cc
Maximum particle size 0.62 in (16 mm)
Maximum cycle frequency 12 strokes per minute, depending on application
Materials 316 stainless steel; other materials available
Actuator seal filled Teflon®; other materials available
Static seals fluoroelastomer; other  materials available
Plunger seals filled Teflon, polyurethane, EPDM rubber, other materials available
Sample temperature range -40°F to 575°F (-40°C to 302°C), depending on seal material and duty cycle
Ambient operating temperature range -5° to 131°F (-20° to 55°C) depending on seal material
Line mount adapter type 2.5 in (63 mm) clamp ferrule
Compressed air requirement 2 SCFM at 30 to 80 psig (2.1 to 5.5 barg)
Dimensions 14.7 in x 3 in (373 mm x 76 mm)
Shipping weight 21 lb (9.5 kg)
