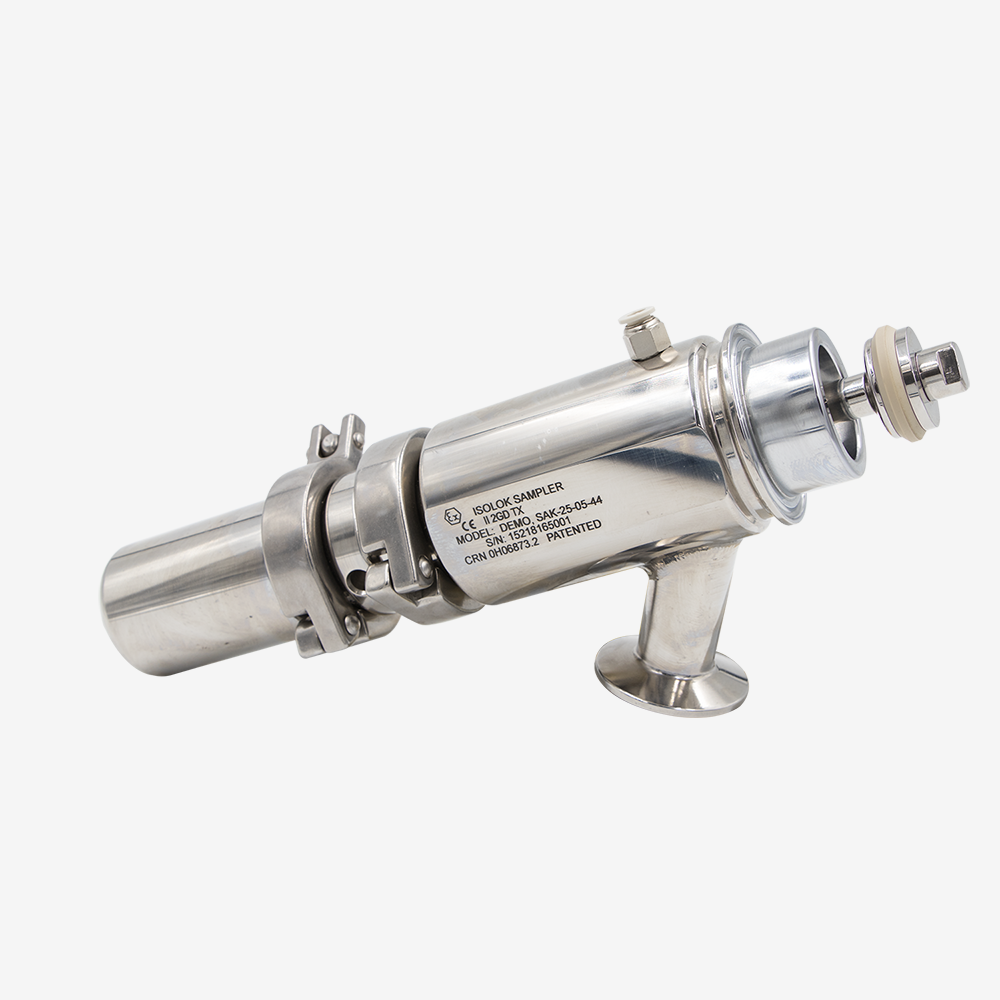

ISOLOK SAK Sampler 1

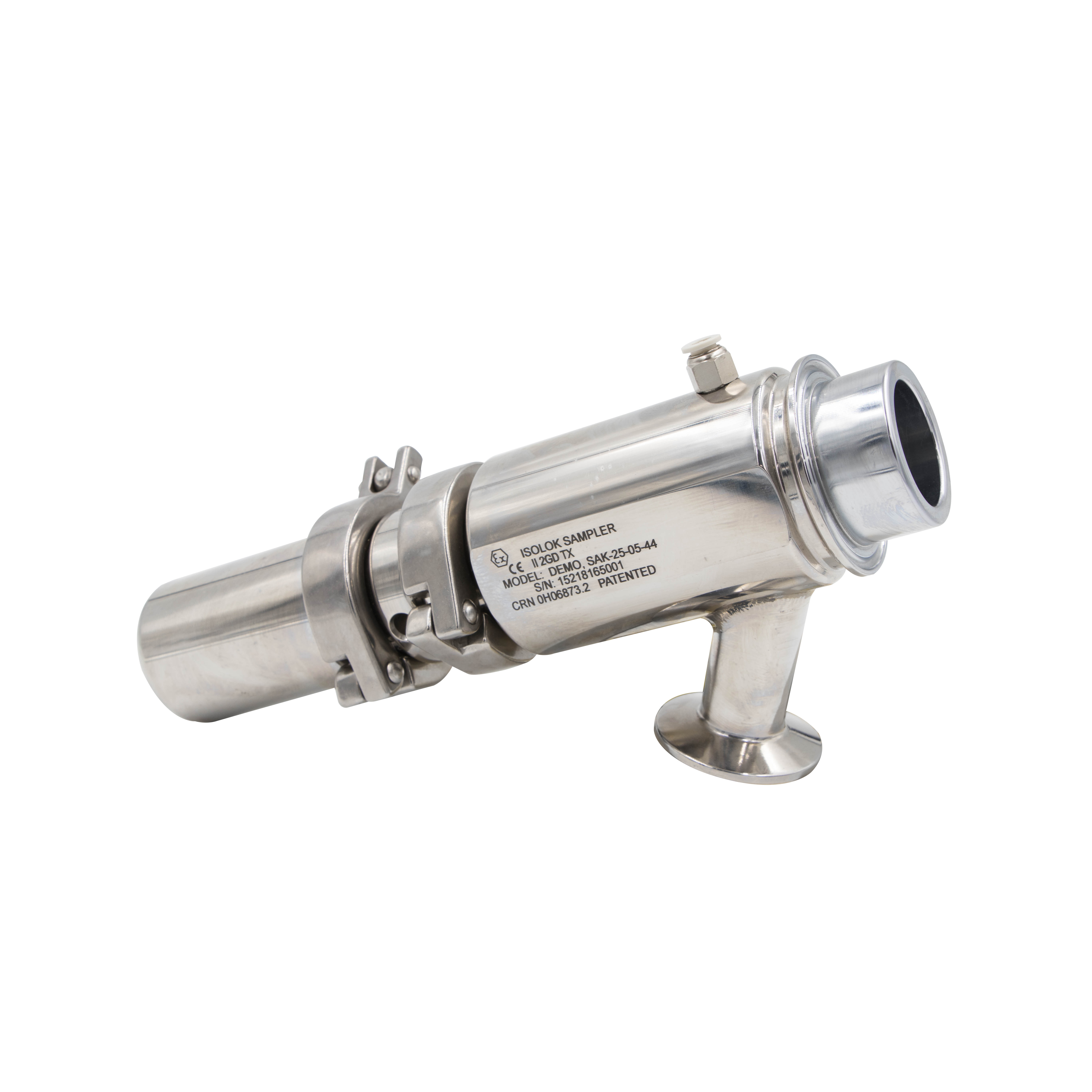

ISOLOK SAK Sampler 2
ISOLOK SAK Sampler 1
ISOLOK SAK Sampler 2

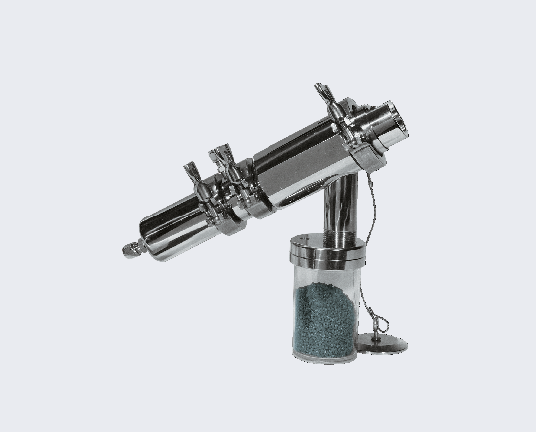

SAK Automatic Sampler

Part #: TBD

Get Started

Request A Quote

Not What You're Looking For?

Contact Us
Designed for sampling powders, flakes, and granules, the ISOLOK SAK sampler ensures that your samples are representative of your entire process.
The ISOLOK sampler's design uses compressed air to grab a fixed amount of product at set intervals. The product is then discharged by gravity to a sample container. This ensures that your sample is representative of the entire batch.

  • The SAK powder sampler is designed to capture a 16 or 18cc sample each cycle, making it adaptable to sampling requirements.
  • The sampler's tri-clamp mounting design allows for easy installation, maintenance, and versatility within process lines- verticle drop chutes, slide cutes, or bins/hoppers.
  • Handles powder, flakes or pellets up to 11/32 inch (9mm) without shearing or degrading sample material.

Sample volume per cycle 16 or 18 cc
Maximum particle size 0.34 in (9 mm)
Maximum cycle frequency 15 strokes per minute, depending on application
Materials 316 stainless steel; other materials available
Actuator seals filled Teflon®; other materials available
Static seals fluoroelastomer; other materials available
Plunger seals filled Teflon, polyurethane, EPDM rubber; other materials available
Sample temperature range -40°F to 575°F (-40°C to 302°C), depending on seal material and duty cycle
Ambient operating temperature range -5° to 131°F (-20° to 55°C) depending on seal material
Line mount adapter type 2 in (50 mm) clamp ferrule
Compressed air requirement 2 SCFM at 30 to 80 psig (2.1 to 5.5 barg)
Dimensions 10.44 in x 3 in (26.5 cm x 7.6 cm)
Shipping weight 10 lb (4.5 kg)
