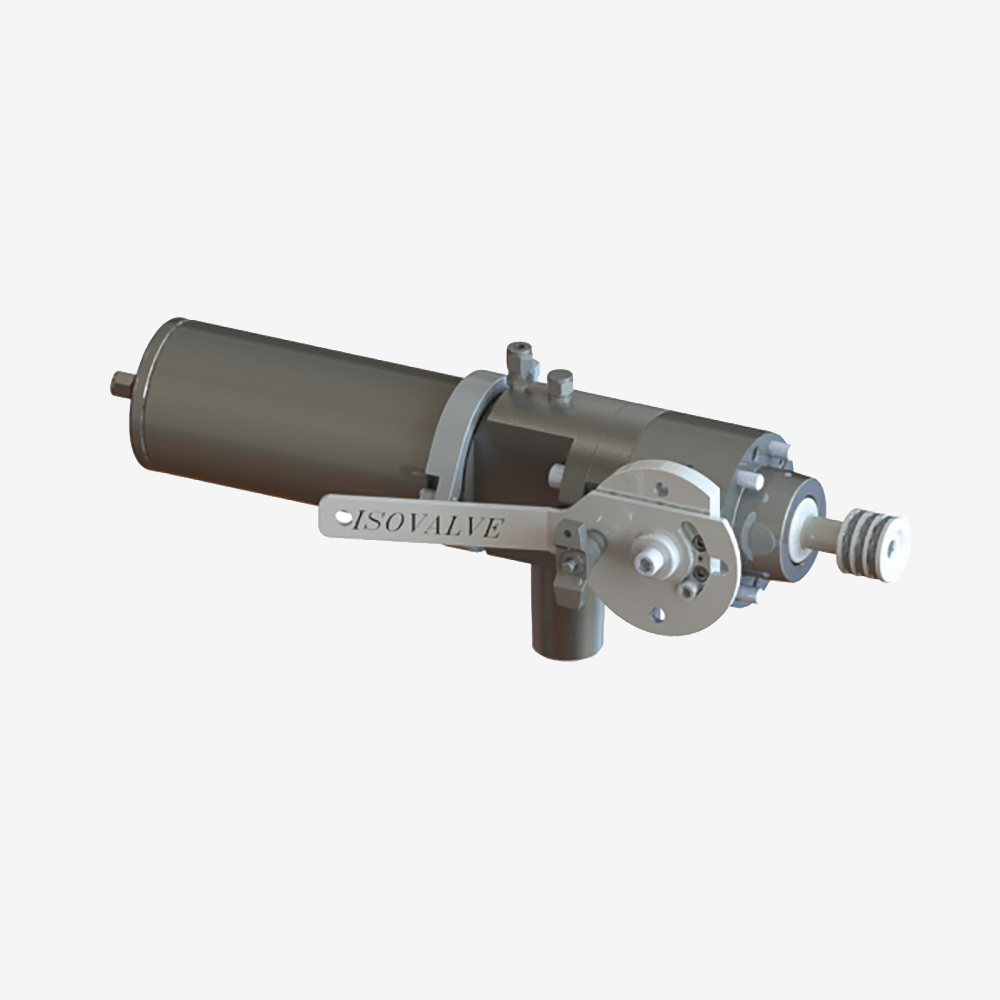

SAL-B Automatic Isolatable Sampler

Part #: TBD

Get Started

Request A Quote

Not What You're Looking For?

Contact Us
Obtain samples safely from continuously pressurized process lines with the ISOLOK SAL-B sampler. Designed for liquid and slurry applications, the SAL-B can handle processes of up to 300 psi (20.7 bar) and particles up to 3/8 inches (9 mm).
The sampler is built with 316 stainless steel and tough, hardened 17-4PH to ensure that it can stand up to abrasive materials such as sand and gravel slurry tailings.

Due to these high demands, the sampler comes with an ISOVALVE and separate closure plate as standard to ensure that the sampler can be isolated and removed from the process line while it is under pressure. The sampler also has telltale ports on the isolation valve for verification of depressurization to ensure operator safety.

  • Remain confident in your sample's representation with the continuous pressure sampler's optional park position cylinder that prevents product accumulation and wear.
  • A variety of customizations are available from various seal materials, port closures, line adapters, different containers, and more.

Sample volume per cycle 8 or 25 cc
Maximum cycle frequency 10 strokes per minute for non-park position samplers; 6 strokes per minute for park position samplers, depending on application
Maximum particle size  3/8 in. (9 mm)
Line mounting options bolted hub
Materials 316 and 17-4PH stainless steel
Actuator and static seals Filled PTFE and fluoroelastomer
Plunger seals Polyurethane, EPDM, FFKM, PTFE, NBR or custom
Compressed air requirement 2 SCFM at 90 psi (.05 m³/minimum at 6.2 bar)
Operating pressure recommended range 300 psig (20.7 bar) process at 80 psig (5.5 barg) air
Dimensions 15.875 in. l x 6 in. d (40 cm. x 15.25 cm.) for non-park samplers
20.813 in. l x 6 in. d (52.8 cm. x 15.25 cm.) for park samplers
Shipping weight 33 lbs. (15 kg.) for non-park samplers; 45 lbs. (20 kg.) for park samplers
