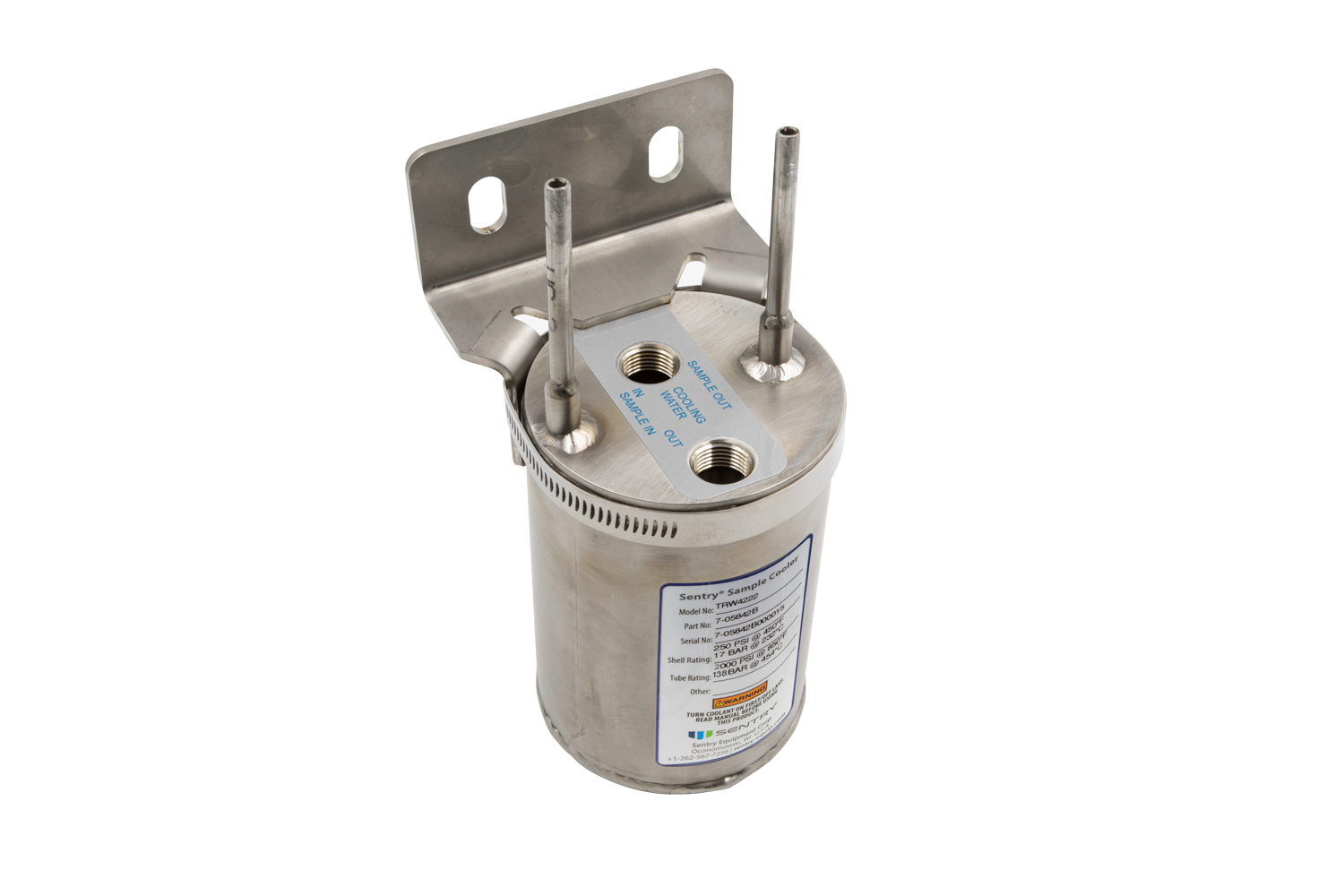

Contact UsThe Sentry TRW tube sample cooler cools a sample from a process stream. That may seem simple, but each TRW is a uniquely designed small tube in a shell heat exchanger.
The sample to be cooled flows through the tube side of the cooler, and the cooling fluid, usually water, flows through the shell side. The cooled sample then can be taken to a laboratory for analysis or piped to in-line process instrumentation for continuous monitoring of properties such as conductivity, pH or other chemical constituents.
-
Minimizes cooling water needs with its helical coil design
-
Small profile allows for easy installment in tight spaces such as on or near the boiler
-
The ideal application is for cooling low-pressure boiler water with flows below 1200 cc/min
Pressure and Temperature Rating
- TRW coil rated up to 2000 PSI at 850°F (138 bar at 454°C)
- TRW shell rated up to 250 PSI at 450°F (17 bar at 232°C)
- Pressure and temperature ratings are dependent on material selection.
Material
- 304/304L stainless steel shells available standard
- 316/316L stainless steel 1/4” tubed coils available standard
- Alternative material options not available
ASME Code Stamp Not Available
Surface Area
- 1.2 ft2 (0.11 m2)
Related Resources
Learn more about how the TRW Sample Cooler can benefit your application with the following resources.
Spec Sheets

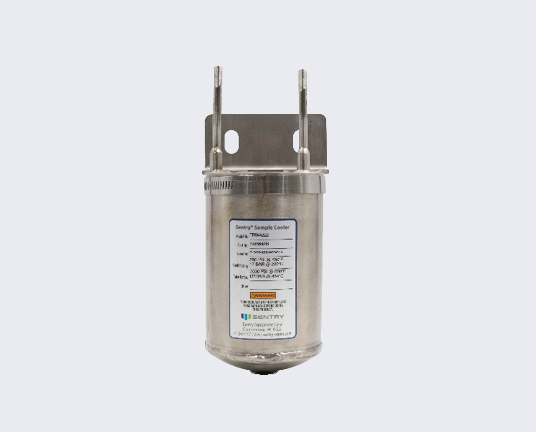

TRW Sample Cooler Spec Sheet
Instruction Manuals
Sentry Sample Cooler IOM
Marketing Materials
Keep it Cool with Sample Coolers
Application Guides
Heat Exchanger Application GuideNeed Something Else?
Review some other related products that could help your current application.
FSR Single Helical Sample Cooler

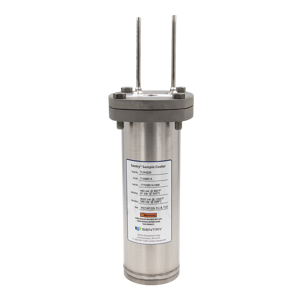

TLR Double Helical Sample Cooler

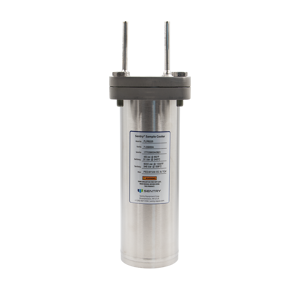

FLR Double Helical Sample Cooler

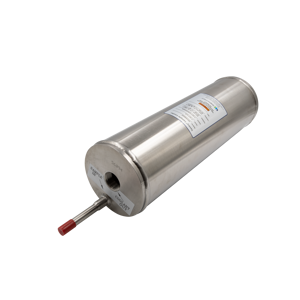

WSW Single Helical Sample Cooler
