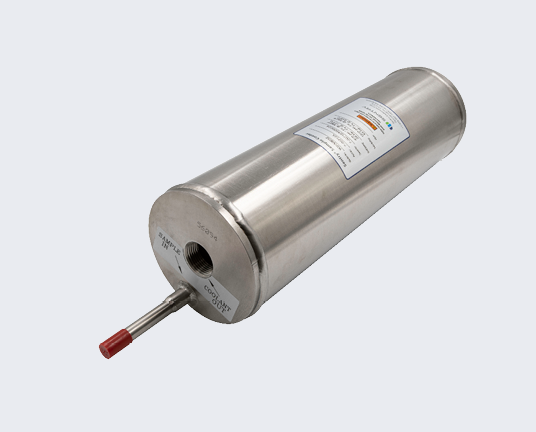

Contact UsThe Sentry WSW tube sample cooler cools a sample from a process stream. That may seem simple, but each WSW is a uniquely designed small tube in a shell heat exchanger.
The sample to be cooled flows through the tube side of the cooler, and the cooling fluid, usually water, flows through the shell side. The cooled sample then can be taken to a laboratory for analysis or piped to in-line process instrumentation for continuous monitoring of properties such as conductivity, pH or other chemical constituents.
-
Minimizes cooling water needs with its helical coil design
-
Supports low pressure drops
-
Easy to maintain due to it's fully drainable coil
Pressure and Temperature Rating
- WSW coil rated up to 1200 PSI at 650°F (82 bar at 343°C)
- WSW shell rated up to 400 PSI at 350°F (27 bar at 177°C)
- Pressure and temperature ratings are dependent on material selection.
Material
- 304/304L and 316/316Lstainless steel shells available standard
- 316/316L stainless steel 1/2” tubed coils available standard
- Contact us for additional material options
ASME Code Stamp Available
Surface Area
- 2.5 ft2 (0.23 m2)
