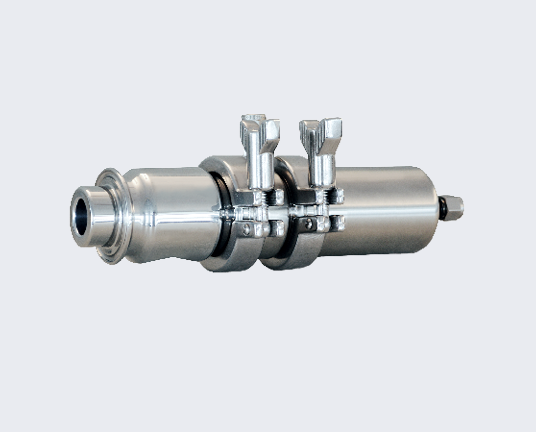

M4KSA Sanitary Sampler
Part #: ISOLOK M4KSA Sampler
Designed for milk, whey, and pharmaceutical sampling, the ISOLOK M4KSA sanitary sampler ensures that your samples are representative of your entire process.
This automatic sampler is easy-to-clean and streamlined. The ISOLOK sampler's design uses compressed air and a controller to sample at a receiving dock or on pressure lines for accurate butterfat content of raw milk or other applications that need to avoid contamination.
- Small body bore diameter and sanitary O-ring design.
- ISOLOK M4KSA sanitary sampler users report major savings in required agitation time as well as the elimination of manual sampling from receiving tanks.
- The simple hygienic design comes with a sanitary quick disconnect tri-clamp mounting suitable for any line size.
|Sample volume per cycle
|Maximum cycle frequency
|12 strokes per minute, depending on application
|316 stainless steel/Buna-N; other seal materials available
|Sample temperature range
|-40° to 500°F (-40° to 260°C), depending on seal material and duty cycle
|Ambient operating temperature range
|-5° to 131°F (-20° to 55°C), depending on seal material
|Compressed air requirement
|2 SCFM at 90 psi (.05 m³/min at 6.2 bar)
|8.25 in x 3 in (21 cm x 8 cm)
|6.7 lb (3 kg)
Learn more about how the M4KSA Sanitary Sampler can benefit your application with the following resources.
