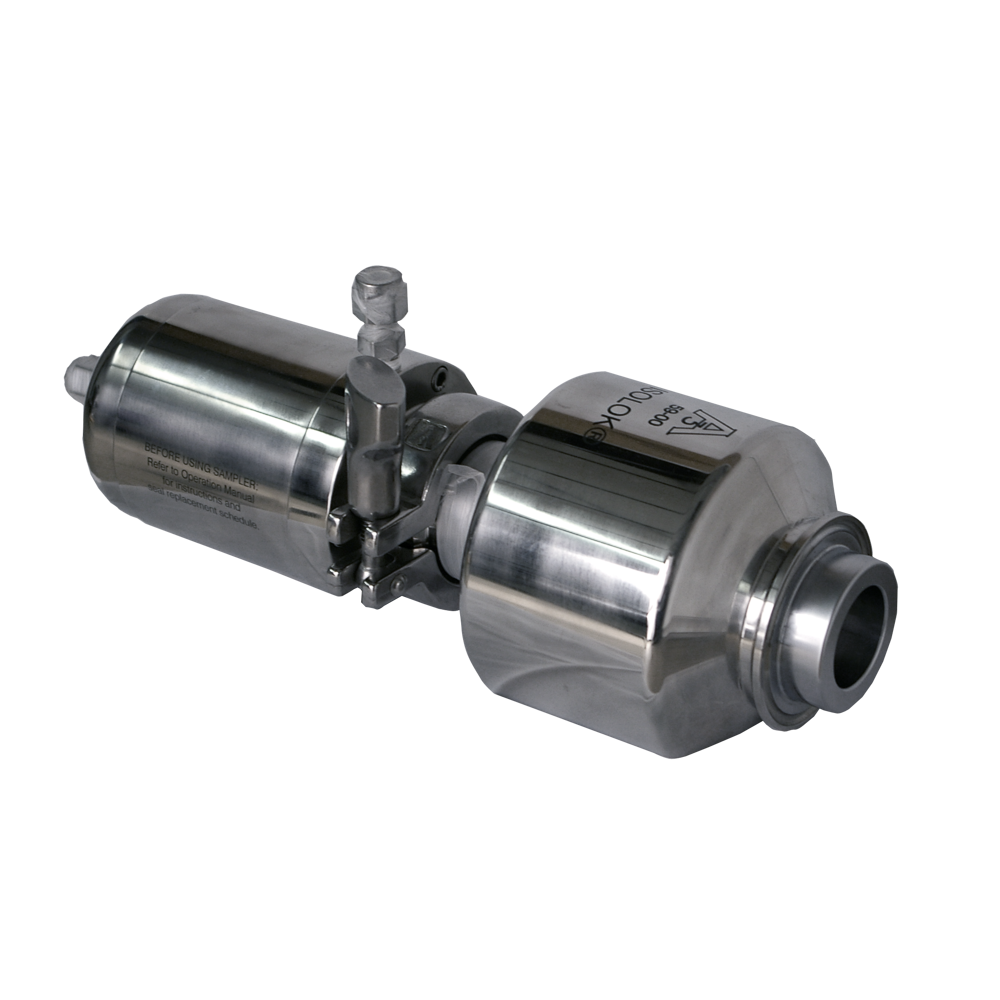

Designed for sampling medium viscosity products such as cream or orange juice, the ISOLOK MSC sampler ensures that your samples are representative of your entire food process
This automatic sampler is easy-to-clean and compact enough to fit within a process line with a tri-clamp mount.  This ensures that your sample is not only representative of the entire batch but also protected from external influence.

  • The MSC sampler is designed to capture a 14 cc sample each cycle, making it adaptable to many sampling requirements.
  • Includes a wide-mouth mount capable of attaching a variety of labware plastic bottles.
  • A variety of customizations are available from port closures, line adapters, different containers, and more.

Sample volume per cycle 14 cc
Maximum cycle frequency 10 strokes per minute, depending on application
Line mounting options Tri-clamp
Materials 316 stainless steel/Buna-N; other seal materials available
Sample temperature range -40° to 500°F (-40° to 260°C), depending on seal material and duty cycle
Ambient operating temperature range -5° to 131°F (-20° to 55°C), depending on seal material
Compressed air requirement 2 SCFM at 90 psi (.05 m³/min at 6.2 bar)
Dimensions 10.3 in x 4 in (26 cm x 10 cm)
Shipping weight 16.6 lb (7.5 kg)
