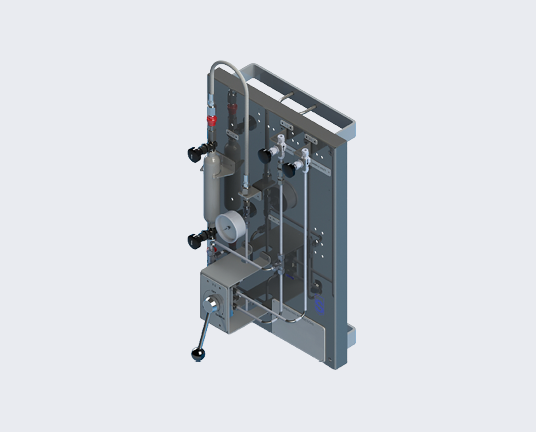

Safely sample gas with Sentry’s closed-loop MCG Gas Sampler. By utilizing a sample cylinder, your operator, environment, and sample avoid contamination and danger.

This gas sampler does this by purging the sample path and sample panel during each cycle. Using the MCG ensures that you are minimizing the loss of vapors to the environment and the sampler action is repeatable, ensuring sample accuracy.

Transportation remains safe and easy with self-sealing quick connects and fittings that prevent leakages.
Operation and maintenance is simple with tandem switching valves that integrate multiple functions.
Additional options include a cylinder relief valve and carbon canisters, ensuring your operators and environment maintain peak safety.

Download Specs

Email Specs

Materials

The standard process wetted materials include: 316 stainless steel, PTFE, and FKM.
Optional materials include: Hastelloy C276, Monel 316 SS, Silonert 316 SS, or Dursan-coated 316 SS.
Optional seal materials include FFKM or EP.

Pressure

This low-e liquid sampler can manage pressures of up to 1800 PSI at 100˚ F (125 bar at 38˚ C) or 1000 PSI at 300˚ F (69 bar at 148˚ C).

Temperature

Additional Capabilities

Each sample is highly customizable. The two most common options are:
- Sample inlet and return/vent configuration
- MCL Sampler plus a sample cooler
Additional add-ons could include:
- In-line filter
- Check valves
- Nitrogen purge
- Flow indicator
- Cylinder relief valve
- Rupture disc
- Pipe stand
- Heaters
- Enclosures
- Isolation Valves
