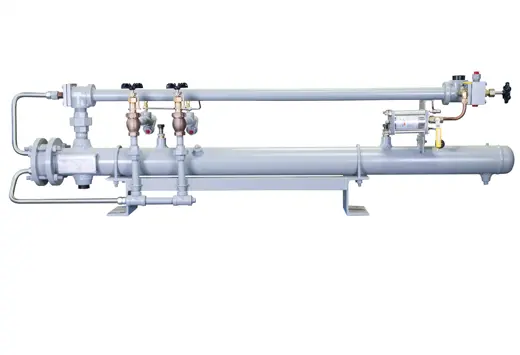

Contact UsReduce your fuel costs with our most efficient boiler blowdown heat exchanger. The Sentry boiler blowdown heat recovery system ensures you don't lose excess heat during your blowdowns.
The XC Boiler Blowdown System uses proportional control to efficiently transfer heat from your outgoing blowdown water to your incoming makeup water, allowing for significant fuel cost savings over time. The stainless-steel tube design ensures piece of mind by withstanding thermal shock, water hammer, abrasive materials, and high water velocities.
- Handles up to 6 boilers at once for increased flexibility
- 90% of heat recovery during boiler blowdown
- Capable of handling high pressures up to 250 psi (17.2 bar)
Pressure and Temperature Rating
- Counterflow Exchanger:
- ASME Boiler and Pressure Vessel Code stamping for 250 PSI at 400°F (17.2 bar at 204°C)
- TRW4222 Sample Cooler:
- TRW coil rated up to 2000 PSI at 850°F (138 bar at 454°C)
- TRW shell rated up to 250 PSI at 450°F (17 bar at 232°C)
Material
- Counterflow Exchanger:
- 304SS tubing with painted carbon steel shell.
- TRW4222 Sample Cooler:
- 316SS tubing with 304SS shell.
Number of Boilers
- 1-6
Length
- 53-126 in (134.62 – 320.04 cm)
Width
- 18-19.5 in (45.72 – 49.53 cm)
Height
- 29-37 in (73.66 – 93.98 cm)
Related Resources
Learn more about how the Heat Exchanger Blowdown System can benefit your application with the following resources.
Spec Sheets

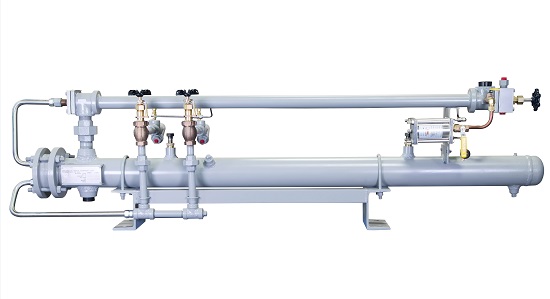

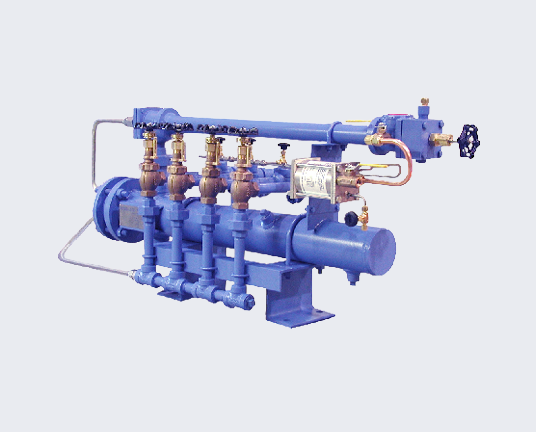

XC Blowdown Spec Sheet
