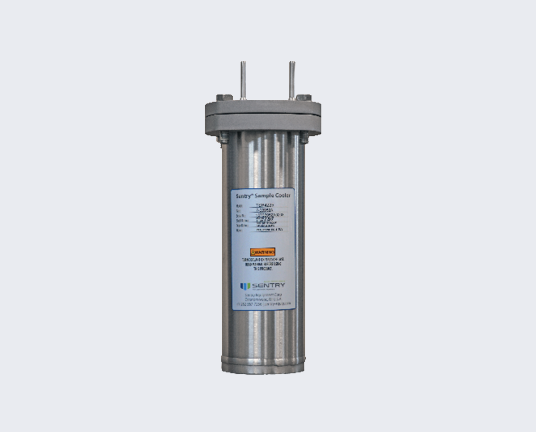

TSR Single Helical Sample Cooler

Part #: See Below for Full List

Get Started

Request A Quote

Still Have Questions?

Contact Us

The Sentry TSR tube sample cooler cools a sample from a process stream. That may seem simple, but each TLR is a uniquely designed small tube in a shell heat exchanger.

The sample to be cooled flows through the tube side of the cooler, and the cooling fluid, usually water, flows through the shell side. The cooled sample then can be taken to a laboratory for analysis or piped to in-line process instrumentation for continuous monitoring of properties such as conductivity, pH or other chemical constituents.

  • Minimizes cooling water needs with its single helical coil design

  • Wide variety of exotic alloys available for corrosion resistance

  • Retained shellside gasket reduces reassembly time

  • Formed shell eliminates top shell flange weld interfaces

  • Mounting bracket can be installed without removing flange bolts

Models Shell Design Tube Design Tube Material Shell Material Part Number
TSR-4225
450 psi at 650°F
(31 bar at 343°C)
5000 psi at 1000°F
(345 bar at 538°C)
316/316L SS
1/4 in OD x 0.049 in AW
304/304L SS 7-03952A
TSR-4225U
450 psi at 650°F
(31 bar at 343°C)
4400 psi at 1000°F
(303 bar at 538°C)
316/316L SS
1/4 in OD x 0.049 in AW
304/304L SS 7-03952B
TSR-42B5
450 psi at 650°F
(31 bar at 343°C)
5000 psi at 1100°F
(345 bar at 593°C)
Alloy 625
1/4 in OD x 0.035 in AW
304/304L SS 7-03952C
TSR-42B5U
450 psi at 650°F
(31 bar at 343°C)
5000 psi at 1100°F
(345 bar at 593°C)
Alloy 625
1/4 in OD x 0.035 in AW
304/304L SS 7-03952D
TSR-4BB5
450 psi at 650°F
(31 bar at 343°C)
5000 psi at 1100°F
(345 bar at 593°C)
Alloy 625
1/4 in OD x 0.035 in AW
Alloy 625 7-03952E
TSR-45B5(S)
450 psi at 650°F
(31 bar at 343°C)
5000 psi at 1100°F
(345 bar at 593°C)
Alloy 625
1/4 in OD x 0.035 in AW
316/316L SS 7-03952R
TSR-4525(S)
430 psi at 650°F
(30 bar at 343°C)
5000 psi at 1100°F
(345 bar at 593°C)
316/316L SS
1/4 in OD x 0.049 in AW
316/316L SS 7-03952Q
TSR-4525U(S)
430 psi at 650°F
(30 bar at 343°C)
4400 psi at 1100°F
(303 bar at 593°C)
316/316L SS
1/4 in OD x 0.049 in AW
316/316L SS 7-05016T
