Model MIL Liquid Sampler
Model MIL Liquid Sampler

Model MIL Liquid Sampler

Part #: 7-03844F

Get Started

Request A Quote

Still Have Questions?

Contact Us

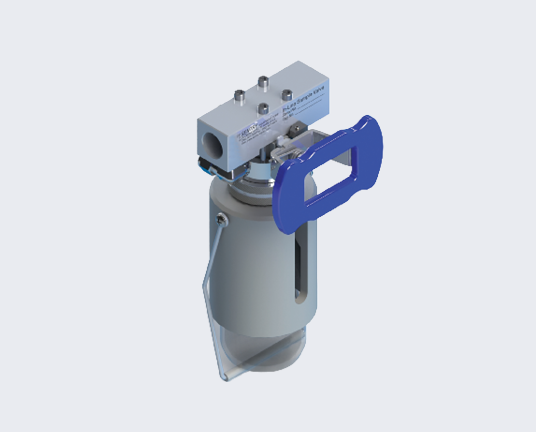

The Model MIL Liquid Sampler uses a close-coupled ball valve to extract samples from in-line petrochemical, refining, and nuclear process piping. This liquid sampler creates a low dead volume in the sample flow area, ensuring representative sampling and a clear sample stream.
In addition to sample integrity, the low-e liquid sampler ensures operator safety through a side-discharge dual needle assembly, adjustable throttle stop, and spring-loaded throttling valve, ensuring operators can close the line quickly without accidental spillage or contamination.

  • The MIL sampler comes available with a variety of configurations to ensure that it meets your application needs.
  • Extra safety is available with an optional enclosure.

Wetted Materials Pressure Range Temp Range
body: 316 stainless steel
O-rings: FKM or FFKM
ball valve seats: PTFE-Teflon or PEEK*
2200 psi (152 bar) up to 450°F (232°C)

*nuclear only
